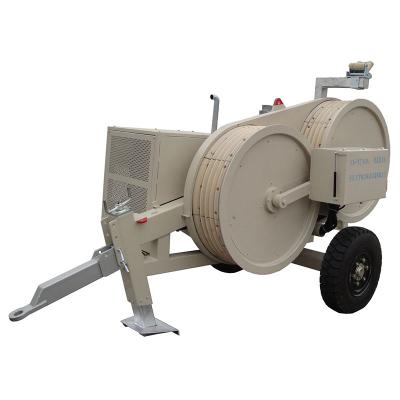

SA-YZ40A Hydraulic Tensioner
- 產品型號：SA-YZ40A
- 產品編號：07171
- 瀏覽次數：7283
SA-YZ40A Hydraulic Tensioner
-
Essential parameter
-
Maximum Tension(kN):40
-
Continuous Tension(kN):35
-
Maximum speed (km/h):5
-
Bull wheel bottom of groove diameter(mm):Φ1200
-
Number of grooves:5
-
Maximum pull-back (kN):40
-
Maximum pull-back speed(km/h):3
-
Maximum suitable conductor diameter (mm): Φ32
-
Engine power /speed (kW/rpm):51/2500
-
Dimensions (mm): 3400×1800×2400
-
Weight(kg):2800
-
Uses
-
it’s used for stringing various steel wire ropes ,conductors and earth wires.
-
Feature
-
Bull wheel with wearproof MC nylon lining segments.
-
Infinitely variable tension control and constant tension conductor stringing .
-
Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
-
Attached hydraulic power output interface to connect hydraulic conductor reel stand .
-
Main component
-
Engine :Beinei Deutz air cooled diesel engine .
-
Main pump/motor : Rexroth (BOSCH)
-
Reducer : RR(Italian)
-
Main hydraulic valve : Rexroth (BOSCH)
